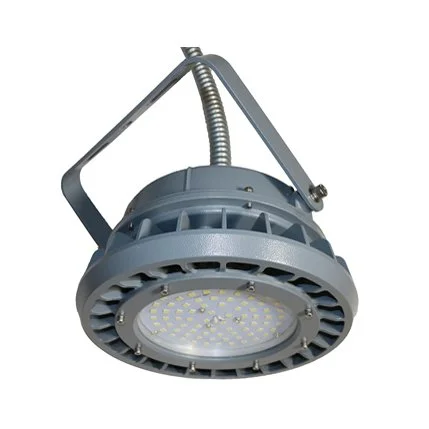

Hazardous Location High Bay
Hazardous Location High Bay
Power: 60W, 100W, 150W, 200W, 300W
Luminous Flux: 7,980lm - 42,000lm
Luminous Efficacy: 133lm/W - 140lm/W
Color Temperature: 4000K, 5000K
CRI: ≥70
Beam Angle: 120°
Power Supply: Built-In
Input Voltage: 100-277V AC ~ 50/60Hz
Power Factor: ≥ 0.9
Dimmable: No
Housing Material: Aluminum
Lens Material: Tempered Glass
Finish: Gray
Ambient Operating Temperature: -40°C ~ +50°C / -40°F ~ +122°F
Lifetime: ≥ 50,000hr
UL 1598A Listed
Class I, Division I, Groups C, D
Class I, Division II, Groups A, B, C, D
Class II, Division I, Groups E, F, G
Class II, Division II, Groups E, F, G
Class III
Applications
Certifications
Photometrics
Downloads
Specification Table
EX-3060
7,980lm - 8,400lm
133lm/W - 140lm/W
0.94 ft² EPA
B3-U1-G0
7.71lbs
EX-3100
13,300lm - 14,000lm
133lm/W - 140lm/W
2.13 ft² EPA
B3-U1-G1
38.36lbs
EX-3150
19,950lm - 21,000lm
133lm/W - 140lm/W
2.13 ft² EPA
B4-U1-G1
38.36lbs
EX-3200
26,600lm - 28,000lm
133lm/W - 140lm/W
0.94 ft² EPA
B4-U1-G2
38.36lbs
EX-3300
39,900lm - 42,000lm
133lm/W - 140lm/W
0.94 ft² EPA
B4-U1-G2
38.36lbs
